Description

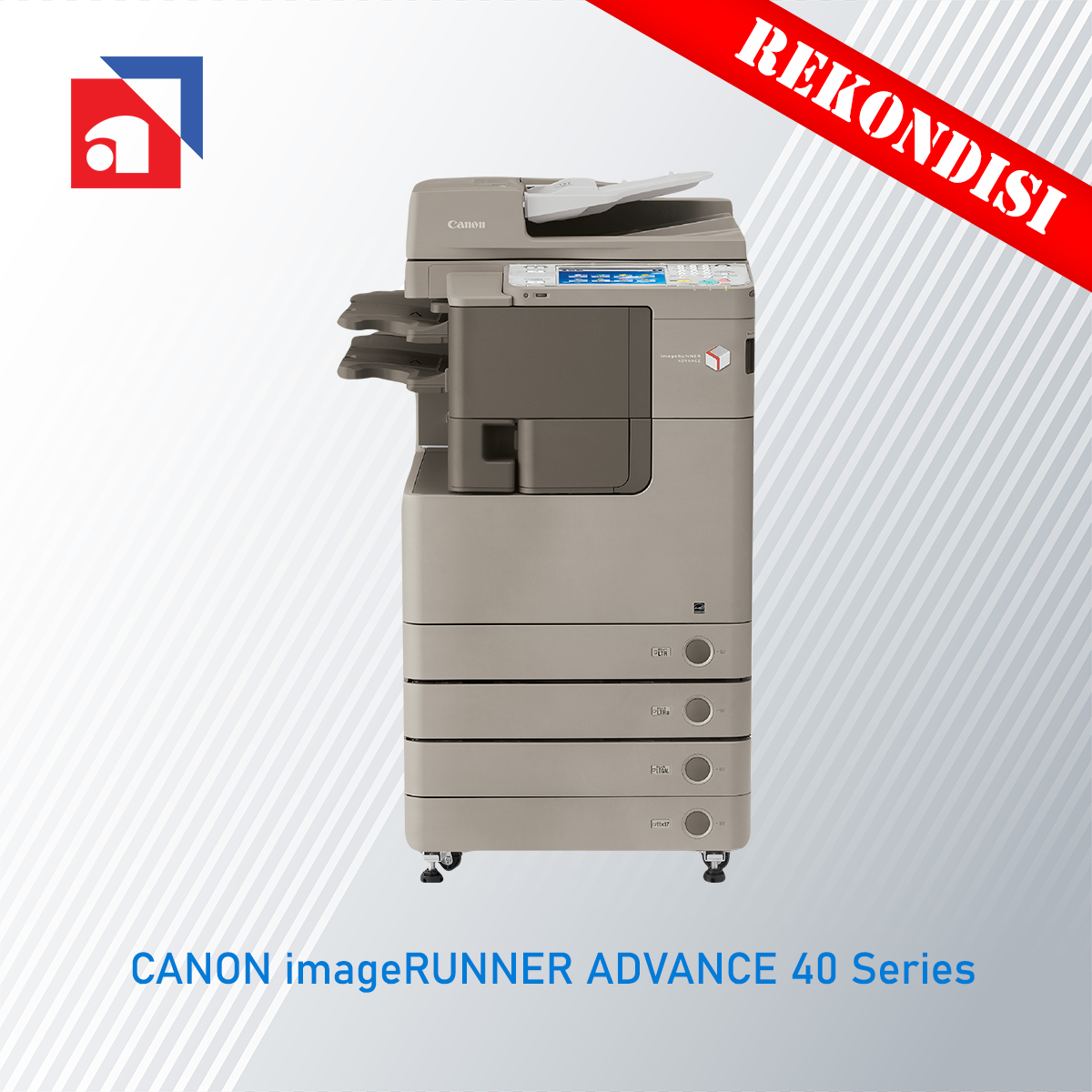

Model Name image RUNNER ADVANCE 4025/4035/4045/4051
Type
Digital Multifunction Imaging System Functions: Standard: Copy, Print (UFR II), Scan, Send, Store
Optional: Print (PCL, Adobe® PostScript® 3), Fax (up to 4 Lines) Operation Panel: 8.4 SVGA Full-color, TFT Screen Scan Specifications
Network TWAIN Scan: Standard
Network Scan Utility: Color Network Scan Gear
Image Server Memory
Standard: 1.25GB RAM
Maximum: 1.75GB RAM Hard Disk Drive: Standard: 80GB
Maximum: 250GB Mirroring Hard Disk Drive: Optional (80GB, 250GB); Method: RAID1 Network Interface Connection: Standard: 10/100/1000Base-TX
Optional: Wireless LAN (IEEE 802.1x) Other Interface: Standard: USB 2.0 (Host)x2, USB 2.0 (Device)
Optional: Device Port [USB 2.0 (Host)x2], Copy Control Interface
Max Mailboxes Supported
100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes
Maximum Pages Stored: 6,000 Advanced Box
Available Disk Space: Approximately 10GB (Standard HDD) / 113GB (250GB HDD)
Communication Protocol: SMB or WebDAV
Supported Client PC: Windows (Windows 2000/XP/7/Windows Vista)
Maximum Number of Concurrent Connections: SMB: 32 / WebDAV: 12 (Active Sessions)
Advanced Box Features: Disabling Advanced Box, Storage Filtering, Authentication for Advanced Box Log-in, Search Function, Sort Function, Printing a PDF File with a Password, image WARE Secure Audit Manager Support Memory Media
Standard: USB Memory
Optional: SD, SDHC, CompactFlash®, Memory Stick, Microdrive
Letter Up to 45 ppm
Legal Up to 25 ppm
Ledger Up to 22 ppm
First Copy Time (Letter): 3.8 Seconds
Multiple Copies 1 to 999
Magnification
From Platen Glass: 25% – 400% (1% increments)
From ADF: 25% – 200% (1% increments)
Preset Reductions 25%, 50%, 64%, 73%, 78%
Preset Enlargements
121%, 129%, 200%, 400%Basic Copy Features Preset R/E Ratios by Area, Finishing, Two-sided, Density/Exposure Adjustment, Original Type Selection, Interrupt Mode, Sample Set, Setting Confirmation/ Cancel, Standard Keys, Reset, Guide Display, Job Duration Display, Reserved Copying Special Copy Features: Two-page Separation, Booklet, Job Build, N on 1, Add Cover, Sheet Insertion, Different-size Original, Transparency Cover Sheets, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Watermark, Print Date, Shift, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Block, Job Done Notice, Mirror Image, Store in Mail Box, Superimpose Image, Favorite Setting, Previous Settings, Secure Watermark (Optional)
Standard Paper Capacity
(20 lb. Bond): Dual 550-sheet Cassettes 80-sheet Stack Bypass
Optional: Dual 550-sheet Cassettes 2,700-sheet Paper Deck
Maximum: 4,980 Sheets Maximum Output Capacity: (20 lb. Bond): 3,100 Sheets (with Staple Finisher or Booklet Finisher)
Standard: 250 Sheets (Inner Tray)
Output Sizes
Cassette
Cassette 1: Legal, Letter, Letter-R, Statement-R, Executive
Cassettes 2/3/4: 11 x 17, Legal, Letter, Letter-R, Statement-R, Executive, Custom Size [5-1/2 x 7-1/8 to 11-3/4 x 17 (140mm x 182mm to 297mm x 431mm)]
Bypass
11 x 17, Legal, Letter, Letter-R, Statement-R, Executive, Custom Size [3-7/8 x 5-7/8 to 11-3/4 x 17 (99mm x 148mm to 297mm x 431mm)] Other Option: Envelope Feeder Attachment*** (COM10 No. 10, Monarch, DL, ISO-C5, ISO-B5)
Acceptable Paper Weights
Cassette 16 lb. Bond to 34 lb. Bond
Bypass 14 lb. Bond to 80 lb. Cover
Duplexing
Paper Size: Standard Automatic Trayless Duplexing (up to 11 x 17)
Paper Weights: 14 lb. Bond to 28 lb. Bond
Warm Up Time
From Power On: 38 Seconds or Less
From Sleep Mode: 10 Seconds or Less
Exposure Control Automatic or Manual (9 levels)
Power Requirements
120V AC 60Hz, 9.3A/NEMA 5-15 Power Consumption: Maximum: 1,500W; Sleep Mode: 1W
Dimension
35-1/2 x 22-1/4 x 27-7/8
(909mm x 565mm x 708mm) Installation Space (W x D)
(when the Multi-Purpose Tray is extended)
35-1/2 x 27-7/8
(909mm x 708mm)
