Description

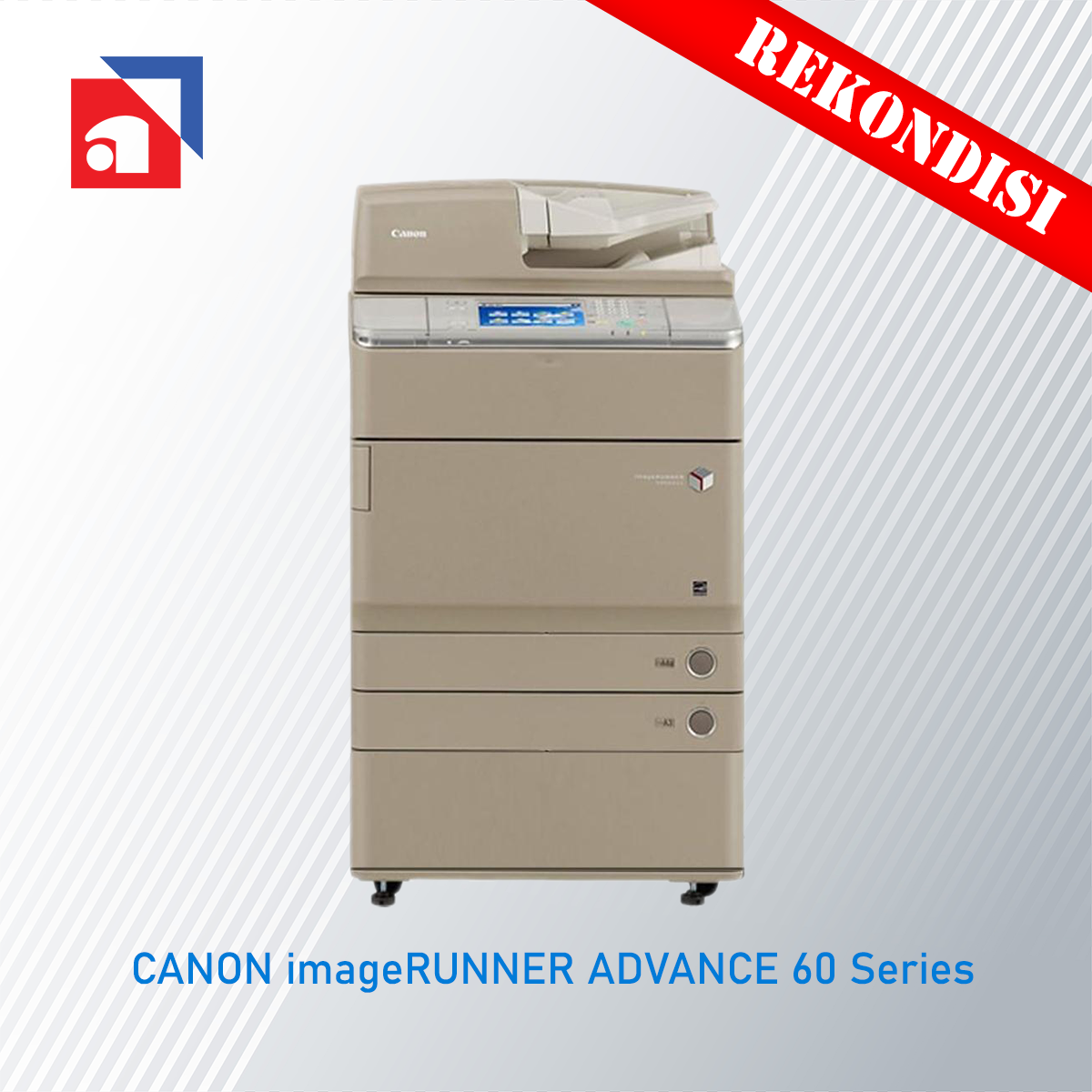

Model Name image RUNNER ADVANCE 6055/6065/6075
Type
Digital Multifunction Imaging System Functions
Standard: Copy, Print (UFR II), Scan, Send, Store
Optional: Print (PCL, Adobe® PostScript® 3™), Fax (Up to 4 Lines) Operation Panel
Standard: 8.4 SVGA Full-Color, TFT Screen
Optional: 10.4 SVGA Full-Color, TFT Upright Screen
Image Server Memory
Standard: 1.5GB RAM
Maximum: 2GB RAM Hard Disk Drive
Standard: 80GB
Maximum: 250GBMirroring Hard Disk Drive
Mirroring Hard Disk Drive Optional (80GB, 250GB), Method: RAID1Network Interface Connection
Standard: 10/100/1000Base-TX
Optional: Wireless LAN (IEEE 802.1x) Other Interface
Standard: USB 2.0 (Host)x2, USB 2.0 (Device)
Optional: Device Port [USB 2.0 (Host)x2], Serial Interface, Copy Control Interface
Max Mailboxes Supported
100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes
Maximum Pages Stored: 6,000Advanced Box
Available Disk Space: Approximately 10GB (Standard HDD), 113GB (250GB HDD)
Communication Protocol: SMB† or WebDAV
Supported Client PC: Windows (Windows 2000/XP/7 Windows Vista)
Maximum Number of Concurrent Connections: SMB: 32, WebDAV: 12 (Active Sessions)
Advanced Box Features: Disabling Advanced Box, Storage Filtering, Authentication for Advanced Box Log-in, Search Function, Sort Function, Printing a PDF File with a Password, image WARE Secure Audit Manager Support
Memory Media
Standard: USB Memory
Optional: SD, SDHC, Compact Flash, Memory Stick, Microdrive
Scanning Resolution
Up to 600 dpi x 600 dpi Network TWAIN Scan Standard
Network Scan Utility Color Network Scan Gear
Letter Up to 65 ppm
Legal Up to 32 ppm
First Copy Time 3.1 Seconds or Less
Multiple Copies 1 to 9,999Copy Exposure Automatic or Manual (9 Levels)
Magnification
From Platen Glass: 25% – 400% (1% Increments)
From ADF: 25% – 200% (1% Increments)
Preset Reductions 25%, 50%, 64%, 73%, 78%
Preset Enlargements 121%, 129%, 200%, 400%
Acceptable Originals (Glass) Sheet, Book, 3-Dimensional Objects (up to 4.4 lb.)
Maximum Original Size Up to 11 x 17
Standard Paper Capacity
(20 lb. Bond) Dual 1,500-sheet Drawers
Dual 550-sheet Cassettes
100-sheet Stack Bypass
Optional: 3,500-sheet Paper Deck-A1 or 3,500-sheet Paper Deck-D1
Maximum Paper Capacity
7,700 Sheets (with optional Paper Deck) Output Paper Capacity (20 lb. Bond)
250 Sheets (with Copy Tray)
4,000 Sheets (with Staple Finisher or Booklet Finisher)
Output Sizes
Cassette Output Sizes: 14 lb. Bond to 80 lb. Cover
Bypass Output Sizes: 14 lb. Bond to 140 lb. Index
Acceptable Paper Weights
Cassette
Acceptable Paper Weights:11 x 17, Legal, Letter, Letter-R, Executive, Statement-R, Custom Size
Drawers: Letter
Bypass
Acceptable Paper Weights:11 x 17, Legal, Letter, Letter-R, Executive, Statement-R, Custom Size
Duplexing
Paper Size: Standard Automatic Trayless Duplexing (Up to 11 x 17)
Paper Weight: 14 lb. Bond to 80 lb. Cover Special Media Support
Cassettes: Tab
Bypass: Transparency, Tracing, Labels
Warm Up Time
From Power On: 38 Seconds or Less
From Sleep Mode: 30 Seconds or Less
From Energy Saver Mode: Approximately 20 Seconds
Power Requirements 120-127V AC 60Hz, 16A
Plug: NEMA 5-20P
Power Consumption:
Maximum: 2.0kW or Less
Sleep Mode: 1W or Less
Energy Saver Mode: 158Wh or Less (-50% is selected)
Dimension
48 x 25-3/8 x 30-3/8
Installation Space (W x D): 53-5/8 x 30-3/8 (1362mm x 770mm) (When Booklet Finisher is attached, and Stack Bypass and Auxiliary Tray are extended)
Weight Approximately 522.5 lb.
