Description
Main Specifications

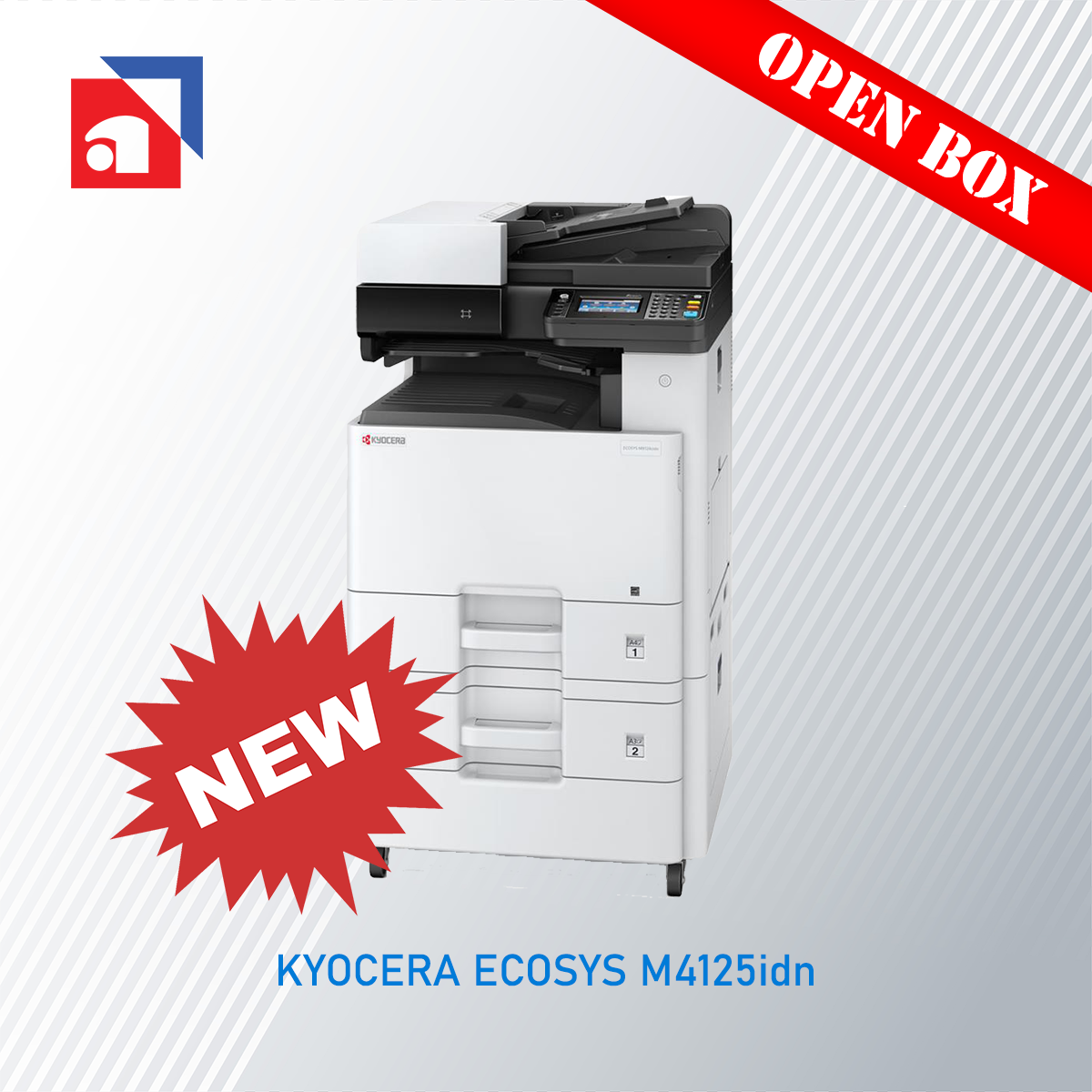

| Model | ECOSYS M4125idn | ||
| Main Function | Copy, Print, Scan, Fax (Optional) | ||
| Writing Method | Semiconductor Laser | ||
| CPU | ARM Cortex-A9 (Dual Core) 1.2GHz | ||
| Print Speed (A4) (Mono) | 25 ppm | ||
| Scanning Speed (A4) 300dpi | Simplex | 50/50 ipm | |
| Duplex | 16/16 ipm | ||
| Memory | Standard 1GB (Max. 3GB) | ||
| SSD Capacity | SSD 32GB (Optional) / SSD 128GB (Optional) | ||
| Warm Up Time | 20 seconds or less | ||
| Paper Capacity | Standard | 600 sheets [1 x 500 sheets (Cassette) + 100 sheets (MPT)] | |
| Maximum | 1,600 sheets (Main Unit + 2 x 500 sheets PF-471 x1 + MPT) | ||
| Paper Size | Cassette | Min. A5R – Max. A3 (Legal) | |
| MPT | Min. A5R – Max. A3 (Legal) | ||
| Paper Weight | Cassette | 60 – 163 g/m2 | |
| MPT | 45 – 256 g/m2 | ||
| Duplex Printing | Paper size: A5R – A4/Legal; Paper weight: 60 – 163 g/m2 | ||
| Output Capacity | Max. 250 sheets + 50 sheets with standard Job Separator | ||
| Control Panel | 4.3-inch Color Touch LCD Panel | ||
| Document Processor | Standard (Max. 50 sheets RADF Type) | ||
| Dimension (W x D x H) (Main Unit) | 590mm x 590mm x 688mm (with DP) | ||
| Weight (Main Unit) | Approx. 72 kg | ||
| Power Consumption (Standard configuration) | Copy/Print Mode | 390W | |
| Stand-by Mode | 55W | ||
| Energy Saver | 0.5W | ||
| Noise (ISO7779/ ISO9296) | Copy/Print Mode | 49dB(A) | |
| Stand-by Mode | 34dB(A) | ||
Copy Functions（Standard）
| Model | ECOSYS M4125idn | ||
| Copy Size | Max. A3 (Ledger) – Min. A6R | ||
| Resolution | 600 x 600 dpi | ||
| First Copy Time (Mono) | 5.8 seconds | ||
| Zoom Ratio | Manual | 25% – 400% (1% per Step) | |
| Pre-defined | 5R5E | ||
| Multiple Copy | 1 – 999 | ||
Print Functions (Standard)
| Model | ECOSYS M4125idn | |
| Resolution | 600 x 600 dpi; 1,200 x 1,200 dpi | |
| PDL | PRESCRIBE, PCL6, KPDL3 (Postscript 3 compatible), XPS, PDF Direct Print Ver. 1.7 | |
| First Print Out Time (Mono) | 5.8 seconds | |
| Supported Protocol | TCP/IP, NetBEUI, FTP, Port 9100, LPR, IPP, IPP over SSL, WSD Print, Apple Bonjour | |
| Operating System Supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10; Apple Macintosh OS X 10.5 or later; Linux | |
| Interface | USB 2.0 High Speedx1; Ethernet 10BASE-T/100BASE-TX/1000BASE-T; USB Host Interface (USB Host)x2; NFC TAGx1; 802.11 b/g/n/Wireless LAN/WiFi Direct (Optional) | |
| USB Memory Printing Format | TIFF, JPEG, PDF, XPS, Open XPS | |
| Mobile Printing | AirPrint, Mopria, KYOCERA Mobile Print | |
Scan Functions (Standard)
| Model | ECOSYS M4125idn | |
| Color Selection | Auto Color (Color/Gray); Auto Color (Color/B&W); Full Color; Grayscale; Black & White | |
| Resolution | 600dpi, 400dpi, 300dpi, 200dpi, 200x400dpi, 200x100dpi | |
| File Format | TIFF, JPEG, XPS, Open XPS, PDF (High-compression PDF) | |
| Image Type Mode | Text, Photo, Text + Photo, Light Text (Fine Line) | |
| Transmission Type | Scan to SMB; Scan to E-mail (SMTP, SMTP over SSL); Scan to FTP or FTP over SSL; Scan to USB; TWAIN Scan; WSD Scan; WIA Scan | |
| Address Storage | 200 addresses (Common address list), 50 groups (Group address list) | |
Fax Functions (Optional)
| Model | ECOSYS M4125idn | |
| Original Size | Max. A3 (Ledger) – Min. A5 (Statement) | |
| Coding Method | MMR, MR, MH, JBIG | |
| Transmission Speed | 33.6 kpbs | |
| Memory | 12MB | |
| Network FAX | Yes | |
